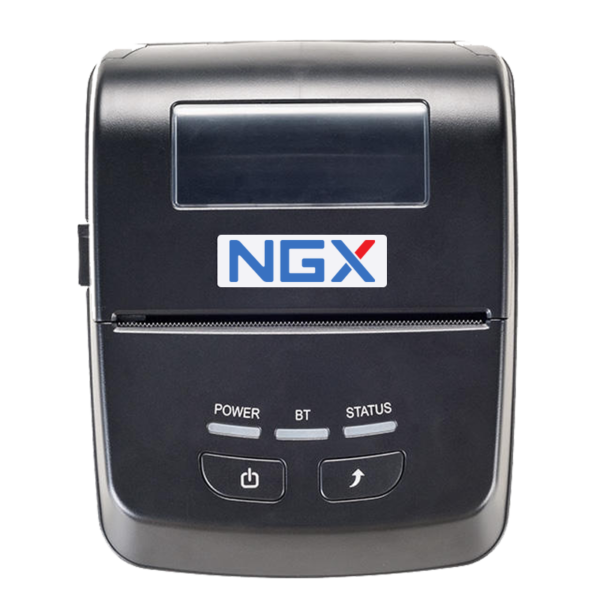

BTP-3N Bluetooth Receipt Printer
A rugged 3-inch mobile receipt printer.
The BTP-3N is a small, lightweight mobile Bluetooth thermal receipt printer with a 3-inch print head, compatible with Windows and Android. It offers a large-capacity battery and low power consumption for mobile receipt printing applications.
₹8,999₹10,000+ GST
In StockShips from Bengaluru · Installed by your nearest dealer
Additional GST will be applicable. Compare every model on the billing machine price list.
Want the counter and desktop options too? See all NGX thermal printers.
☎ Sales +91 80645 25759✉ enquiry@ngxtechnologies.com
- 2″ thermal printer head
- Bluetooth range – 5m
- 100km TPH life
- Low power consumption
- Large capacity battery
- Capable of printing multi-language
Key features.
- 2″ thermal printer head
- Bluetooth range – 5m
- 100km TPH life
- Low power consumption
- Large capacity battery
- Capable of printing multi-language
- Built for field applications
- Supports with Android Billing Software
- Supports with Windows 7/8.1/10 32 bit/64 bit
Technical specifications.
Full brochure (PDF)Hardware details
- Make
- NGX
- Model
- BTP-3N
- Printing method
- Direct thermal
- Resolution
- 203 DPI
- Line spacing
- 3.75mm (Adjustable by commands)
- Print width
- 72 mm
- Max. print speed
- Max. 70 mm/s
- Interfaces
- USB+ Bluetooth (1+1)
- Input buffer
- 128 Kbytes
- NV Flash
- 4M Kbytes
- Emulation
- ESC/POS
- Character size
- ANK, Font A: 1.5×5.0mm (12×24 dots) Font B: 1.1×2.1mm (9×17 dots) simplified/traditional Chinese: 5.0×5.0mm (24×24 dots)
- Barcode types
- 1D: UPC-A/ UPC-E/ JAN13(EAN15)/ JAN8(EAN8)/ CODE39/ ITF/ CODABAR/ CODE93/ CODE128 2D: QR CODE
- Extended character sheet
- PC347(Standard Europe) / Kotakano/ PC850(Multilingual) /PC860(Portuguese) / PC863(Canadian French)/ PC865(Nordic) / West Europe/ Greek/ Hebrew/ East Europe/ Iran/ WPC1252/PC866(Cyrillic2) / PC852(Latin2)/ PC858/ IranII/ Latvian/ Arabic/ PT151(1251)
- Rotation
- 0°. 90° 180°. 270°
- Gross weight
- 0.3kg
- Dimensions
- 135×105×61.5mm (L*W*H)
- Systems
- Windows/Android/IOS/Linux
- Battery
- Li-Po Battery(1500mAh)
- Charging input
- DC 5V/2A
- Work environment
- 0 – 45℃, 10 – 80%RH no condensing
- Storage environment
- -10 – 60 ℃, 10-90% RH no condensing
- Input power
- 9V,1A DC
Printer
- Printer
- 2 inch Thermal Printer
- Print resolution
- 8dot/mm (0.125mm/dot) 203dpi
- Printing Speed
- 50 mmps
- Print head Reliability
- 100Km
- Cutter method
- Tear bar
- Paper end Sensor
- Available
- Internal LEDs
- Notifies errors and printer status
- Interface
- Bluetooth, USB 2.0, 5m Range
- Dimensions (L×W×H) in mm
- 117×82×46 mm
- Weight
- 160g
Software details
- Print font
- -
- Character size
- ANK, Font A: 1.5×5.0mm (12×24 dots) Font B: 1.1×2.1mm (9×17 dots) simplified/traditional Chinese: 5.0×5.0mm (24×24 dots)
- Data buffer
- -
- Logo store memory
- -
- Language Support
- -
- Software interface
- -
- Software Platform
- -
